Form-Fill-Seal Packaging for the Pharmaceutical Industry
Pharmaceutical Cream Packaging Solutions

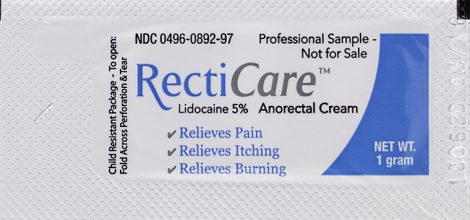

As an FDA registered drug repackager, Liquipak is qualified to work with a wide range of Pharmaceutical Industry clients. We designed the single use sample packets highlighted here as a pharmaceutical cream packaging solution to dispense an over the counter (OTC) topical cream. Following the customer’s specifications a package was developed which featured a side spout configuration and a child-resistant tear notch.
Packets were made from plastic and foil laminated packaging film were reverse printed with the print laminated between the layers of the film to protect it. Vertical form-fill-seal packaging equipment was equipped with dedicated product contact parts. Each packet weighed 1.5 g (± 0.5 g), and was 3″ in length, 1-3/8″ width, and produced in a quantity of over 385,000. Packets required custom packaging: filled packets were individually attached to a printed sample card and then packed into dispenser cartons, and included lot-coding and expiration dating. Quality was assured through digital test stand compression testing, digital gram-scale weigh testing, component and batch traceability, labeling, product accountability, and AQL final inspection.
For more information on this form-fill-seal packaging of an OTC cream project, please contact us or refer to the table below.
Highlights of this Form-Fill-Seal Packaging of an OTC Cream for the Pharmaceutical Industry Project
| Product Description | This is a single-use sample packet of OTC topical cream. | |
| Form-Fill-Seal Packaging Capabilities Applied/Processes | Primary: Engineering
Production – Form-Fill-Seal of Product |
Secondary: Reverse Printing Custom Packaging |
| Equipment Used to Manufacture Part | Vertical form-fill-seal packaging equipment, dedicated product contact parts | |
| Overall Part Dimensions | Length: 3″ Width: 1-3/8″ |
Weight: 1.5 grams |
| Tightest Tolerances | ± 0.5 grams | |
| Material Used | Package: Plastic and Foil Laminated Packaging Film | |
| Material Finish | Package: Reverse Printed | |
| Resistances | The print is laminated between the layers of the packaging film and cannot be removed by abrasion or contact with the detergent or other chemicals or liquids. | |
| Special Feature | Packets feature a side spout configuration with a child-resistant tear notch.The filled packets are individually attached to a printed sample card and packed into dispenser cartons | |
| In process testing/inspection performed | Digital test stand compression testing Digital gram-scale weigh testing Component and batch traceability |
Labeling and product accountability AQL final inspection |
| Industry for Use | Pharmaceutical Industry | |
| Volume | 385,000 + | |
| Delivery/Turnaround Time | 8 weeks | |
| Delivery Location | Alma, Michigan | |
| Standards Met | FDA registered Drug Repackager cGMPs Customer’s packaging specifications |
ISO 9001:2015 Certified QMS Internal quality system requirements |
| Product Name | OTC Cream | |
